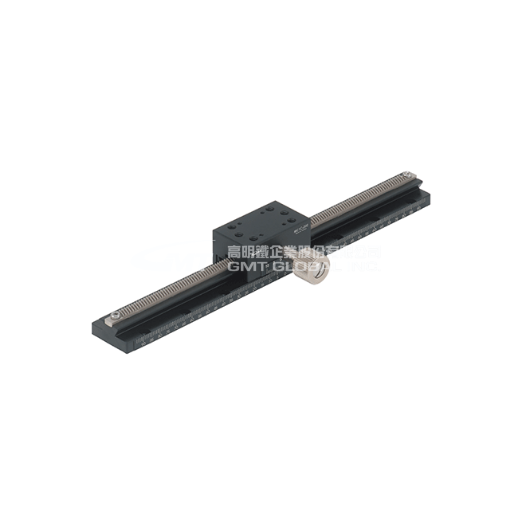

MC1C-200

X axis manual stage
Single axis-X axis
Single slide block, Two Slide Blocks
Table size : 200 (mm)
Travel stroke : ± 37, ± 90 (mm)
★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.
★ Transmission Parts- Rack and pinion.It is suitable for high speed mass feed.
★ Material- Aluminum Alloy

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Contact Us

Update：2022.4.27

Model No.		MC1C-200	MC1C-200-2
Specification	Table Size (mm)	200
	Axis	X-Axis
	Travel Stroke (mm)	± 90	± 37
	Movement Per Knob Rotation (mm)	18
	Micrometer Minimum Reading	0.1 mm / Veriner
	Straightness Accuracy (μm)	50
	Allowable Loading (Kgf)	3
	Weight (Kg)	0.21	0.28
	Material	Aluminum Alloy
	Surface Finish	Black Anodized
	Remark	Single slide block	Two Slide Blocks

Feed Position

Characterisitc of Different Guiding Type

The Main Feeding Mode of Mini Stages
